    Converter MBUS to Ethernet for 15 devices

    Code: 44
    Tip

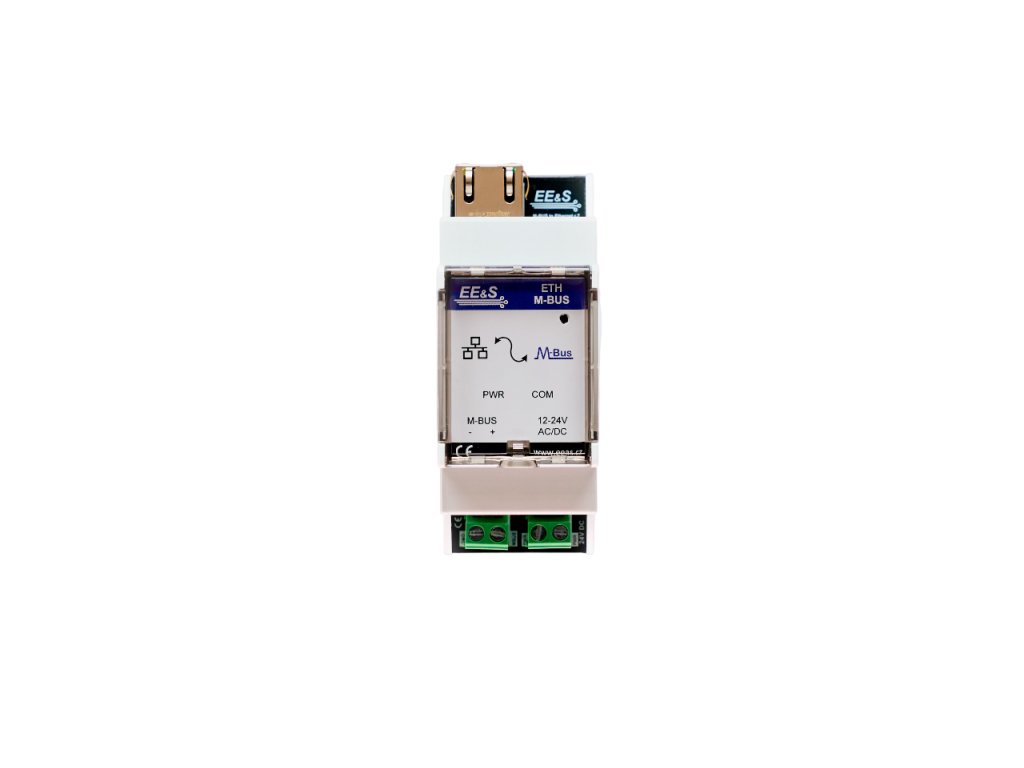

    Foto Front
    €153,78 €186,08 incl. VAT
    In stock (31 pcs)
    Delivery offer

    The device serves as a transparent converter of physical layer Ethernet to MBUS and allows for long-range reading of measuring devices through LAN. The converter supports physical layer MBUS (also known as M-BUS or Meter-BUS) according to the standard EN 13757-2. The device is enclosed in a plastic cover allowing for easy mount on a DIN rail.

    If you are interested in more than stock quantities, please contact us for an individual price offer.

    Detailed information

    Product detailed description

    The device is powered by power supply in the range of 12 to 24VDC/VAC and is able to communicate with up to 15 MBUS slave devices. The maximum length of the cable segment connected to the slave can be up to 1000 meters with a communication speed of 300 bps. For easier management of TCP/IP packets in master system, utility “COM Port Redirector (RFC2217)” is available. This utility allows redirection of TCP/IP packets to Virtual COM Port, alternatively to OPC server.

    Download reference manual:
    Ethernet MBUS 15

    Additional parameters

    Category: Smart Metering
    Weight: 0.05 kg
    Power supply: 12 up to 24 VAC/VDC
    Consumption: 1,5 W (15 active slaves)
    Connectors: ETH RJ45, Power 2P 5mm, MBUS terminal 2P 5mm
    Max. count of MBUS devices: 15
    Max. MBUS segment: 1000 m
    MBUS Baud rates: 300 až 9600 bps
    Ethernet standard: 10/100 Mbit
    Temperature range: -20 up to 85 °C
    Dimensions: 89,7 mm x 36 mm x 62,2 mm
