Intelligent cloud RFID reader Mifare 13.56 MHz (active PoE)
Code: 69Product detailed description

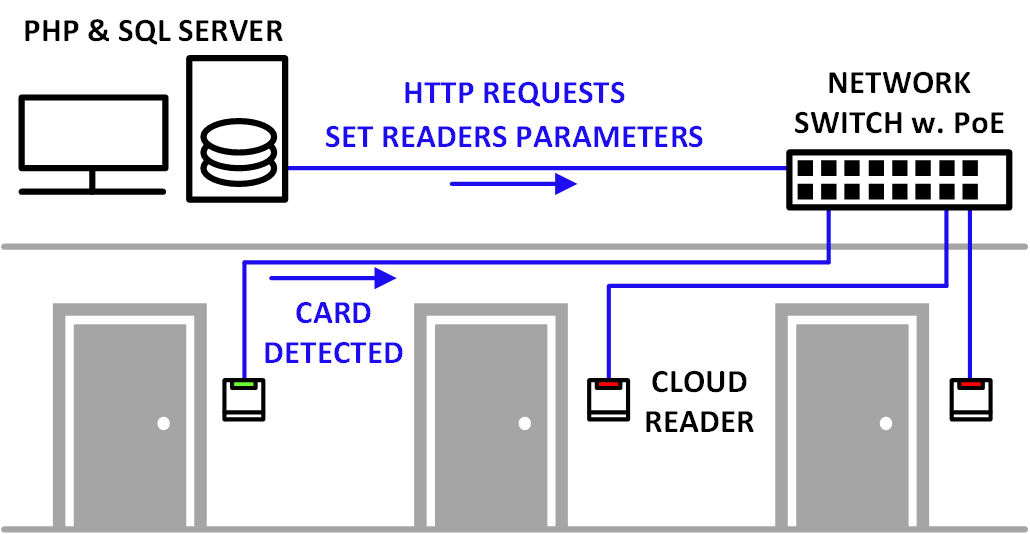

The reader is typically designed for wall mounting in residential areas. It can also be used in production halls for the management of production workers. Wide range of power supply with PoE support makes it easy to install individual modules. Communication with the superior system is performed using standardized HTTP commands. This implementation simplifies the superior system software. The reader provides the possibility of securing the transmitted data. Of course there is also the possibility of updating software reader software via USB service connector, which is located under the device cover. Two-color green / red LED signaling and acoustic output can be controlled using documented HTTP commands.
This reader version supports only active PoE mode.
Download reference manual:
Intelligent cloud RFID (active PoE)
Additional parameters
| Category: | RFID systems |
|---|---|
| Weight: | 0.08 kg |
| Power supply voltage: | 48 VDC nom. (active PoE) |
| Power consumption: | max. 2 W (PD Class 1) |
| Supported RFID standard: | Mifare 1k, Mifare 4k, UltraLight, DesFire, NFC |
| Reading range: | 8 to 10 cm |
| Contact configuartion: | NO / NC |
| Max. switching current: | 2 A |
| Max. switching voltage: | 36 VDC |
| PoE standard: | 802.3af / 802.3at Type 1 or Type 2 (active) |
| Ethernet standard: | 10/100 |
| USB service connection: | Virtual COM port |
| Temperature range: | -20 to 50 °C |
| Dimensions: | 84mm x 84mm x 20mm |
