Ethernet I/O module with three-phase power meter
Code: 70Product detailed description

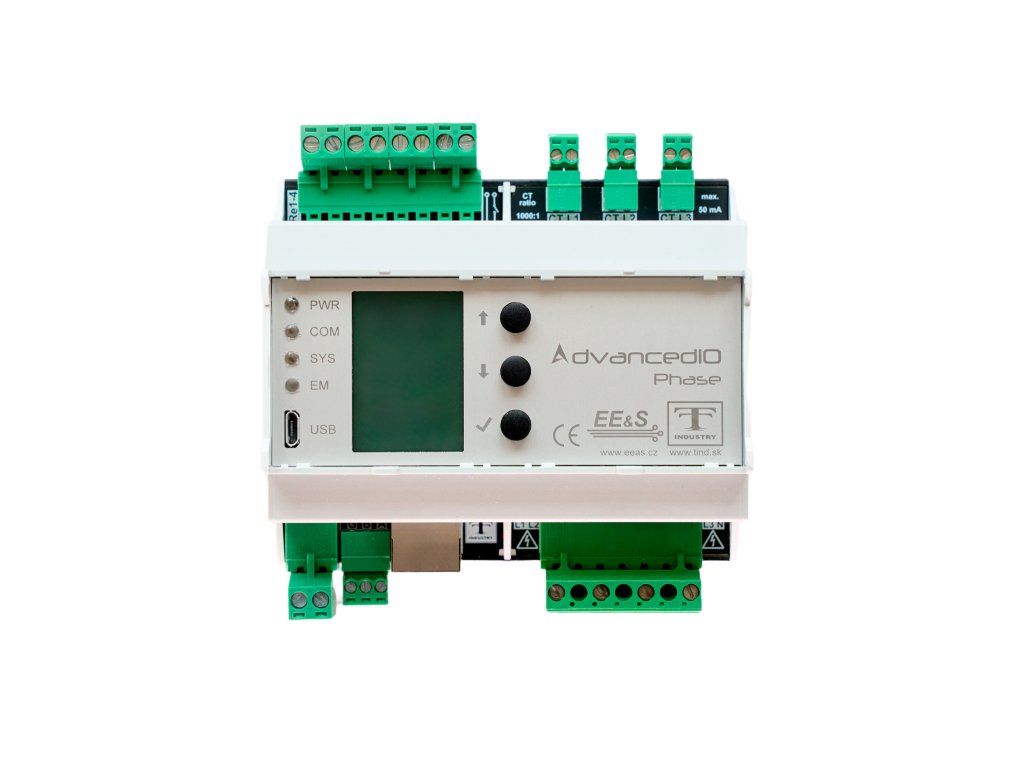

AdvancedIO Phase is a compact device designed to measure electrical energy consumption. AdvancedIO Phase measures phase voltage (directly), current flowing through the phases (bi-directionally and indirectly) and frequency. The device then calculates individual performances, device consumption and can detect a fault on the connected device. AdvancedIO Phase contains 4 switching relay contacts with a maximum switching current of 5A and a voltage of 250VAC, usable for switching the measured load or another element in the installation. The entire device can be part of the Industry 4.0 platform and is controlled via a serial RS485 interface using the Modbus / RTU industrial communication protocol, or via an Ethernet interface using the Modbus / TCP industrial communication protocol. The MQTT connection within the connected LAN is also new. It also includes a display with buttons, which can be used to control individual outputs manually - by the operator. At the same time, it is possible to observe the states of inputs / outputs in real time.The advantage is simple mounting on a DIN rail.
The device is delivered as standard with three 15A current transformers - for other versions, please state your requirements in the individual request.
Download reference manual:
AdvancedIO_PHASE
Additional parameters
| Category: | Distributed I/O |
|---|---|
| Weight: | 0.2 kg |
| Power supply voltage: | 24 VDC |
| Power consumption: | max. 2W |
| Communication interface: | 1x Ethernet, 1x RS485 |
| Supported protocols: | Modbus RTU/TCP, MQTT over LAN |
| Current probes: | 3x CT (typical 15A, 1000:1 ratio) |
| Voltage inputs: | 3x 250 VAC (each input is seperated) |
| Relay output: | 4x (250VAC / 5A) |
| Temperature range: | -20 to 50 °C |
| Dimensions: | 108 mm x 90 mm x 63 mm |
| Accuracy: | better than 1% (non-invoicing meter) |
