Ethernet I/O module for digital inputs and outputs with RS485 interface
Code: 53Product detailed description
Advanced IO Binary is a compact device with a large range of I/O interfaces. Thanks to the large number of digital inputs, it is possible to detect changes in up to fourteen digital inputs, which can be used to connect different sensors with digital output. Four of them have an implemented pulse counting function and can be used to connect measuring instruments with pulse output. According to these changes, it is possible to set seven transistor outputs whose maximum switching current is 3 A and maximum switching voltage is 48 VDC. seven switching relay contacts can be used to switch larger loads, their maximum relay contact current is 8 A and the voltage is 250 VAC. The entire device can be part of the Industry 4.0 platform and is controlled via a serial RS485 interface using the Modbus / RTU industrial communication protocol or via an Ethernet interface using the Modbus / TCP industrial communication protocol. The advantage is simple mounting on a DIN rail.

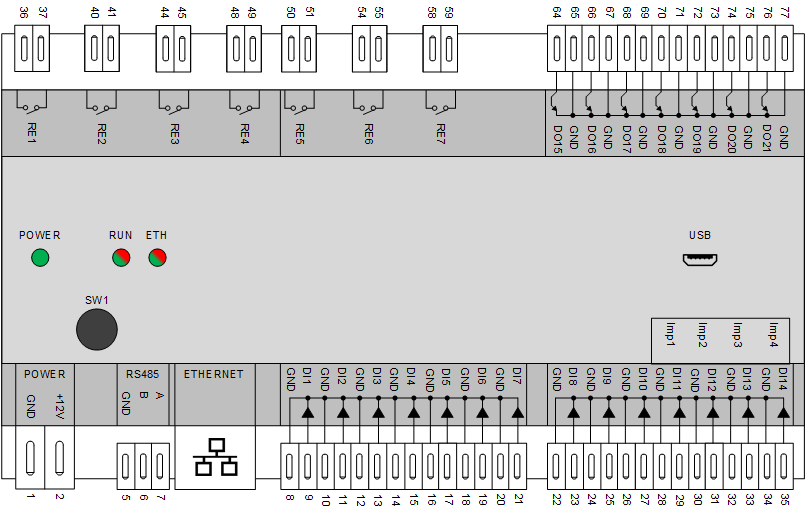

Diagram:
Download reference manual:
Advanced IO Binary
Additional parameters
| Category: | Distributed I/O |
|---|---|
| Weight: | 0.25 kg |
| Power supply voltage: | 24 VDC |
| Power consumption: | max. 2W |
| Communication interface: | 1x Ethernet, 1x RS485 |
| Digital input: | 10x (9-48VDC / 5mA) |
| Digital input with pulse: | 4x (9-48VDC / 5mA / S0 compatible) |
| Transistor output: | 7x (48VDC / 3A) |
| Relay output: | 7x (250VAC / 8A) |
| Temperature range: | -20 to 50 °C |
| Dimensions: | 162 mm x 90 mm x 63 mm |
