    Converter MBUS to RS232 for 60 devices

    Code: 54
    RS232 MBUS 60 1
    €226,63 €274,22 incl. VAT
    In stock (3 pcs)
    Delivery offer

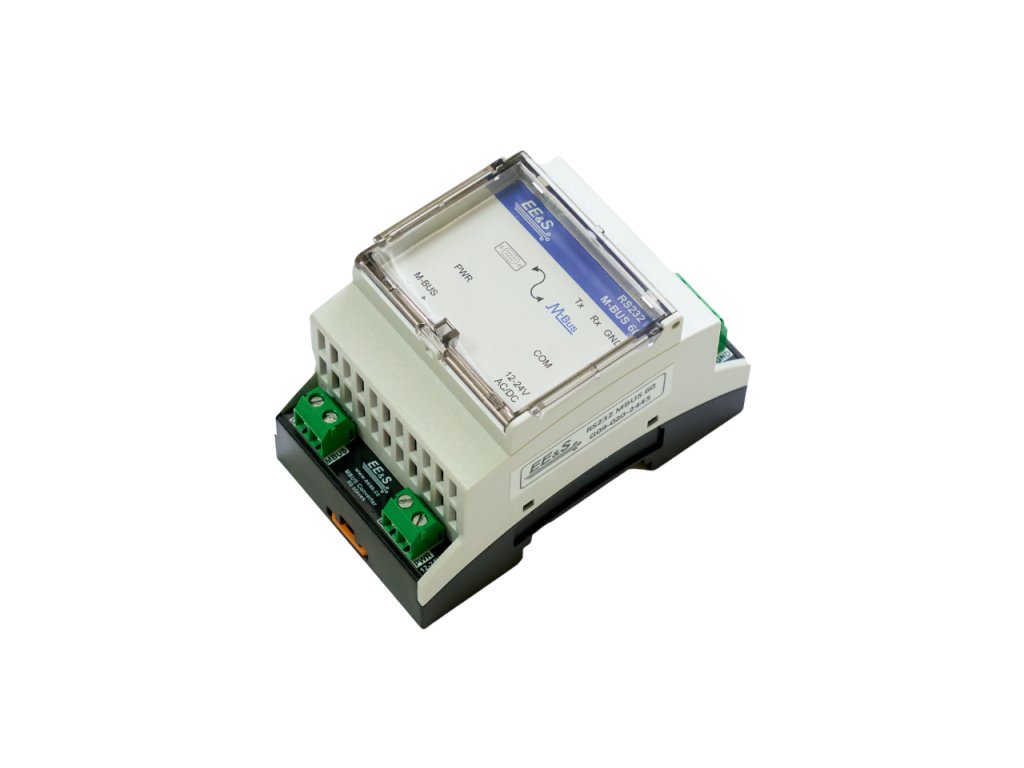

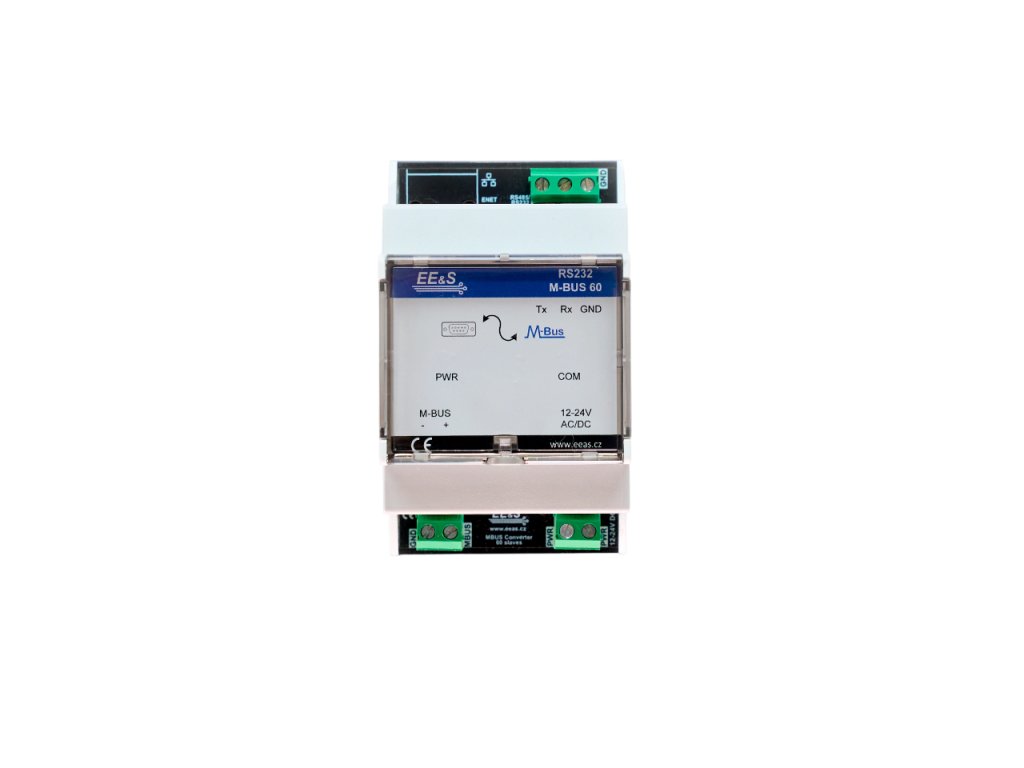

    The device serves as a transparent converter  of RS232 physical layer(EIA / TIA 232) to MBUS, allowing remote readings of energy meters via LAN network. The converter supports the MBUS layer (also known as M-BUS or Meter-BUS) in accordance with EN 13757-2. The device is enclosed in a plastic cover for mounting on a DIN rail.

    If you are interested in more than stock quantities, please contact us for an individual price offer.

    Detailed information

    Product detailed description

    The device can be powered by a direct supply voltage in the range of 12 to 24 V. It is capable of communicating with up to 60 MBUS slave devices. The maximum length of the cable segment to the slave device can be up to 1000 m at a communication speed of 300 bps. It is not necessary to set the baud rate on the device, because the converter works independently of the communication speed used by the parent system.

    Download reference manual:
    RS232 MBUS 60

    Additional parameters

    Category: Smart Metering
    Weight: 0.1 kg
    Power supply voltage: 12 to 24 VAC/VDC
    Power consumption: 2 W
    Max. number of MBUS devices: 60
    Max. length of MBUS segment: 1000 m
    MBUS communication speed range: 300 to 9600 bps
    Temperature range: -20 to 85 °C
    Dimensions: 86 mm x 70 mm x 57 mm
