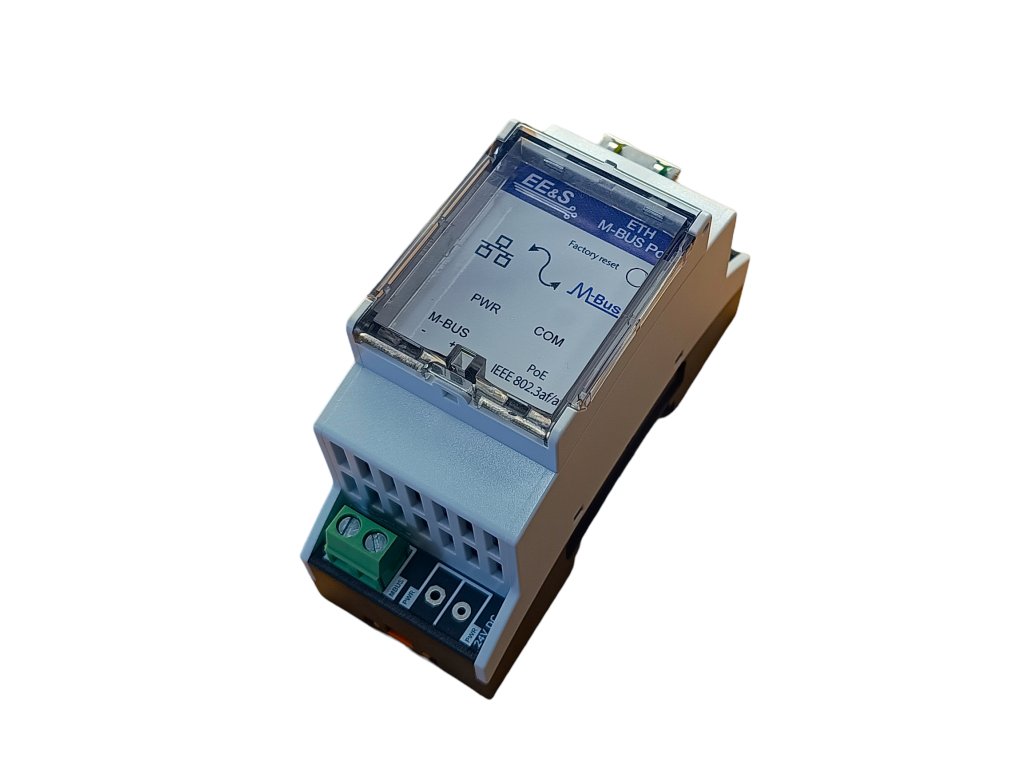

Converter MBUS to Ethernet for 15 devices with PoE supply
Code: 72Product detailed description
The device supports Power-over-Ethernet (PoE) in accordance with the IEEE 802.3af standard, enabling simplified installation without the need for a dedicated power supply. Furthermore, the PoE-based power architecture ensures galvanic isolation between the M-Bus network and the power source, enhancing operational safety and system integrity. The converter is capable of communicating with up to 15 M-Bus slave devices. The maximum permissible length of the cable segment connecting to a slave device is up to 1000 meters at a communication rate of 300 bps. For easier management of TCP/IP packets in master system, utility “COM Port Redirector (RFC2217)” is available. This utility allows redirection of TCP/IP packets to Virtual COM Port, alternatively to OPC server.
Download reference manual:
Ethernet MBUS 15 PoE manual
Additional parameters
| Category: | Smart Metering |
|---|---|
| Weight: | 0.05 kg |
| Power supply: | 12 up to 24 VAC/VDC |
| Consumption: | 1,5 W (15 active slaves) |
| Connectors: | ETH RJ45, Power 2P 5mm, MBUS terminal 2P 5mm |
| Max. count of MBUS devices: | 15 |
| Max. MBUS segment: | 1000 m |
| MBUS Baud rates: | 300 až 9600 bps |
| Ethernet standard: | 10/100 Mbit |
| Temperature range: | -20 up to 85 °C |
| Dimensions: | 89,7 mm x 36 mm x 62,2 mm |
