    Converter for impulse output measuring devices to Modbus TCP

    Code: 67
    Modbus

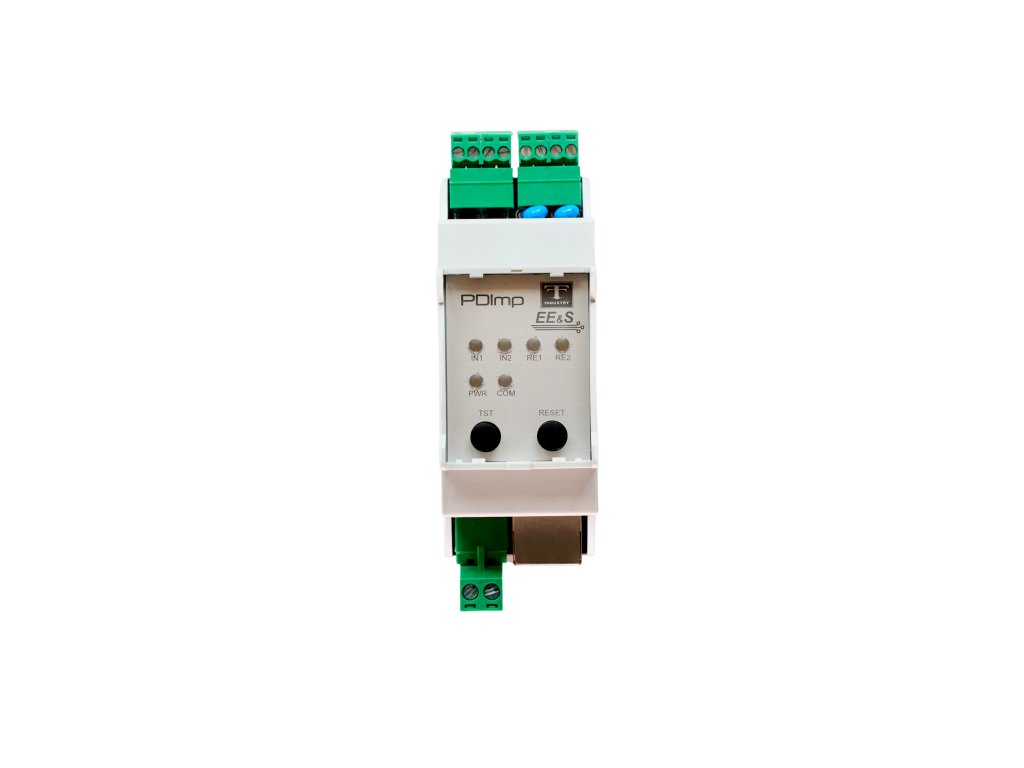

    Foto Front
    €108,86 €131,72 incl. VAT
    In stock (2 pcs)
    Delivery offer

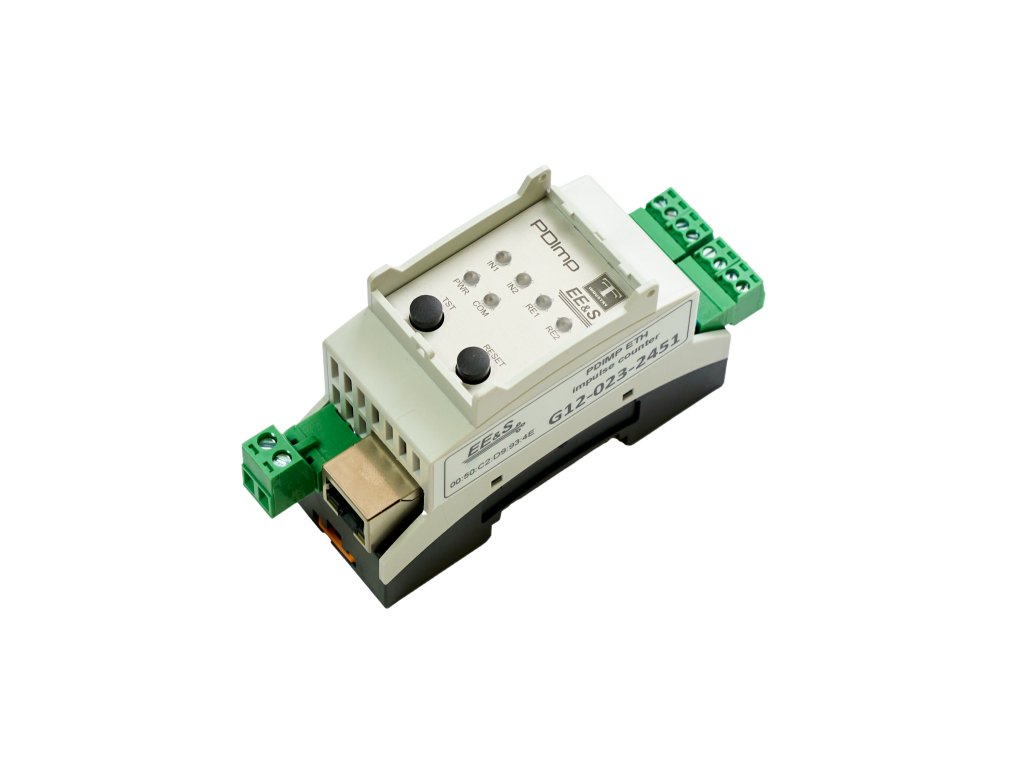

    The device is designed for connection to measuring devices with impulse output and inclusion in modern long-range measurement reading systems. The converter senses the impulses generated by the measuring device and feeds them to the master system through Modbus TCP protocol. The device is enclosed in a plastic cover allowing for easy mount on a DIN rail.

    If you are interested in more than stock quantities, please contact us for an individual price offer.

    Detailed information

    Product detailed description

    The device is powered by 12VDC power supply, controls up to 2 devices with impulse output. The counter of the converter is 64-bit and allows reading from Input type registers. It is possible to set the initial value of the counter through Modbus protocol. The device is equipped with 2 relay digital outputs, controllable through Coil type registers. Typically the device is designed for 24 VDC operation, if needed other voltage please specify in order comment, the relays must be selected properly.

    Diagram:

    Download reference manual:
    PDImp ETH

    Additional parameters

    Category: Smart Metering
    Weight: 0.1 kg
    Power supply voltage: 24 VDC (9-36 VDC)
    Power consumption: max. 1,5W
    Communication interface: 1x Ethernet, Modbus TCP
    Digital input: 2x S0 impulse
    Max. counter value: 2^64
    Relay output: 2x (250VAC / 8A)
    Temperature range: -20 to 50 °C
    Dimensions: 89,7 mm x 36 mm x 62,2 mm
