Converter for impulse output measuring devices to Modbus RTU
Code: 64Product detailed description
The device is powered by 12VDC power supply, controls up to 2 devices with impulse output. The counter of the converter is 64-bit and allows reading from Input type registers. It is possible to set the initial value of the counter through Modbus protocol. The device is equipped with 2 relay digital outputs, controllable through Coil type registers. Typically the device is designed for 24 VDC operation, if needed other voltage please specify in order comment, the relays must be selected properly.

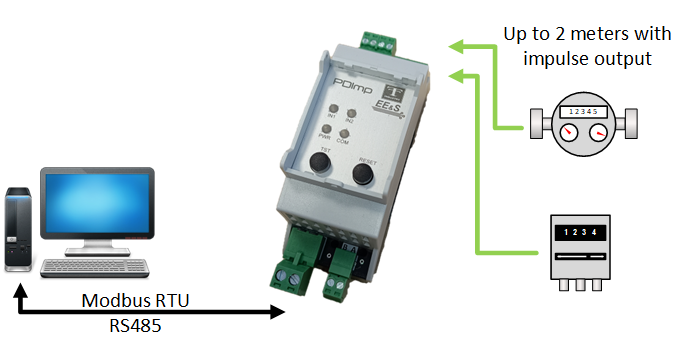

Diagram:
Download reference manual:
PDImp RS485
Additional parameters
| Category: | Distributed I/O |
|---|---|
| Weight: | 0.1 kg |
| Power supply voltage: | 24 VDC (9-36 VDC) |
| Power consumption: | max. 1,5W |
| Communication interface: | 1x RS485, Modbus RTU |
| Digital input: | 2x S0 impulse |
| Max. counter value: | 2^64 |
| Relay output: | 2x (250VAC / 8A) |
| Temperature range: | -20 to 50 °C |
| Dimensions: | 89,7 mm x 36 mm x 62,2 mm |
